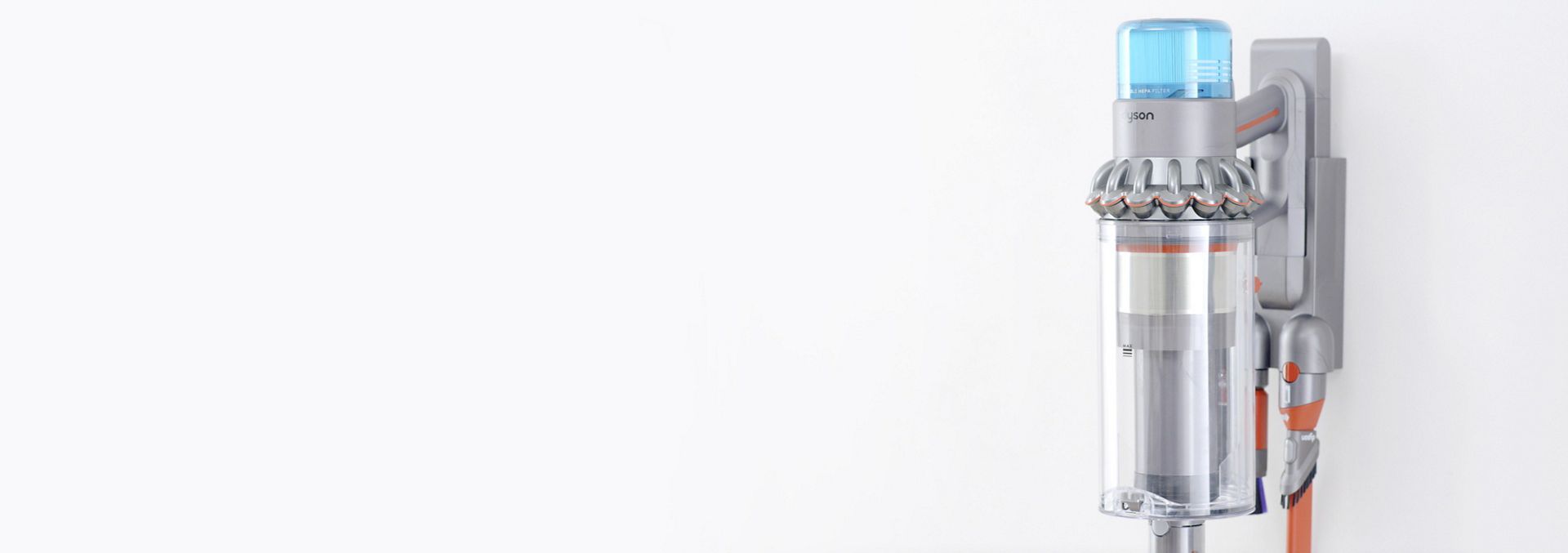

Dock set up and charging
You will receive either a Wall Dok™ or a Floor Dok™ in the box with your machine.

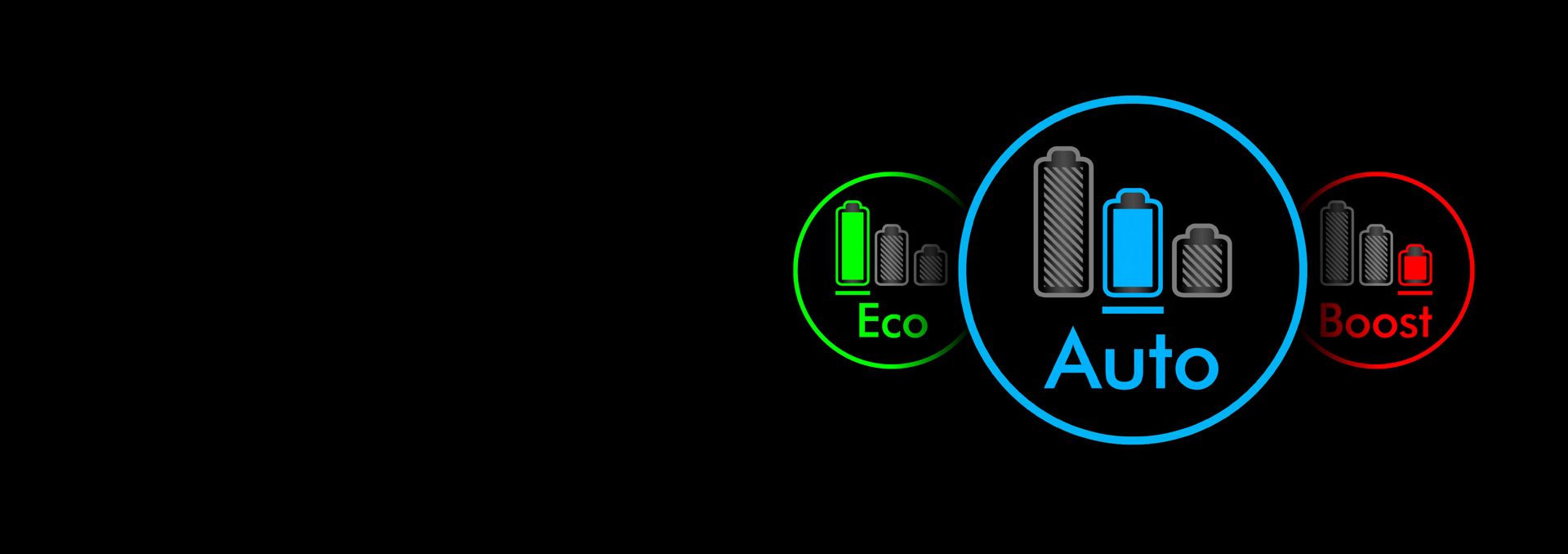

Power modes and LCD screen
Understand your vacuum's different power modes and LCD screen display.

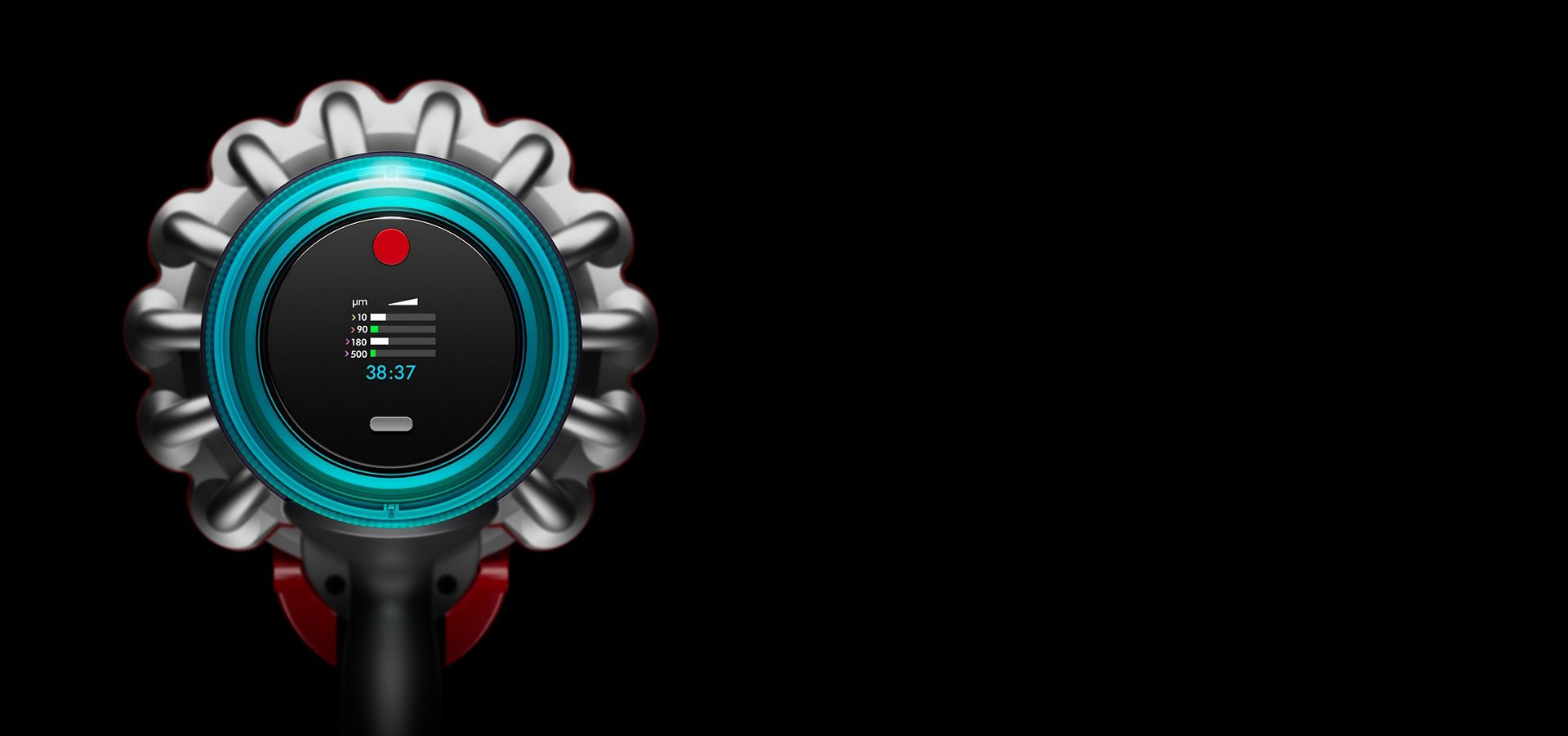

FAQs about the LCD screen
The particle count is a scientific measurement of the debris in your bin. Each bar represents a different size of dust particle. The bars rise faster when more debris of that size is vacuumed.
When beginning your clean, your screen categorizes particles into four size groups: Microscopic, Fine, Medium and Coarse.
The bars on the graph will slow down and turn green to show that less debris is being picked up, letting you know your area is clean
Blue bars are only visible when using your machine in Auto mode, since this represents a high volume of particles with automatically increased suction.
When using any other power mode, you will only see two colours: white and green. White bars show a medium to high volume of particles. Green bars show a low volume of particles.
We recommend Auto mode for the best experience. Suction power automatically increases when higher concentrations of dust are detected. Once the dust is removed, power returns to normal to conserve the battery.
At the end of your clean, the screen displays a summary of the particles that have been removed. Giving you scientific proof of a deep clean.
Yes. The graph works independently of the attachments, and can be used with all cleaner heads, tools and accessories.
You can reset the particle count by stopping the machine for 10 minutes, removing the battery, or putting the machine on charge. Each time the particle count will reset to zero.
Getting to know your cleaner heads

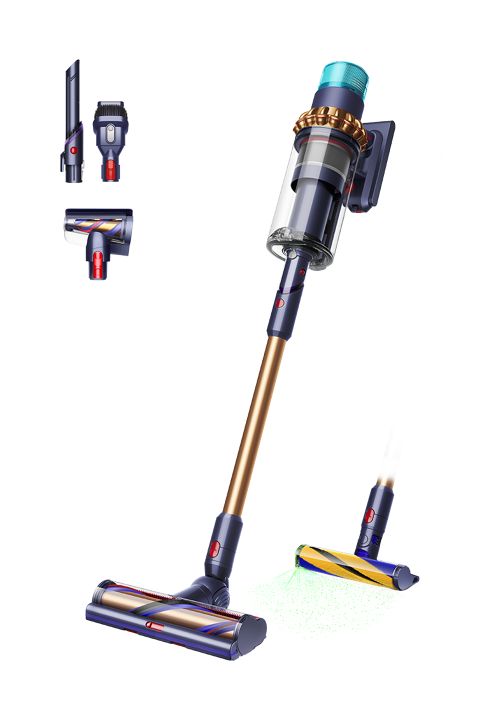

Your Dyson Gen5outsize™ vacuum is engineered to operate with two cleaner heads, for different floor surfaces.
-

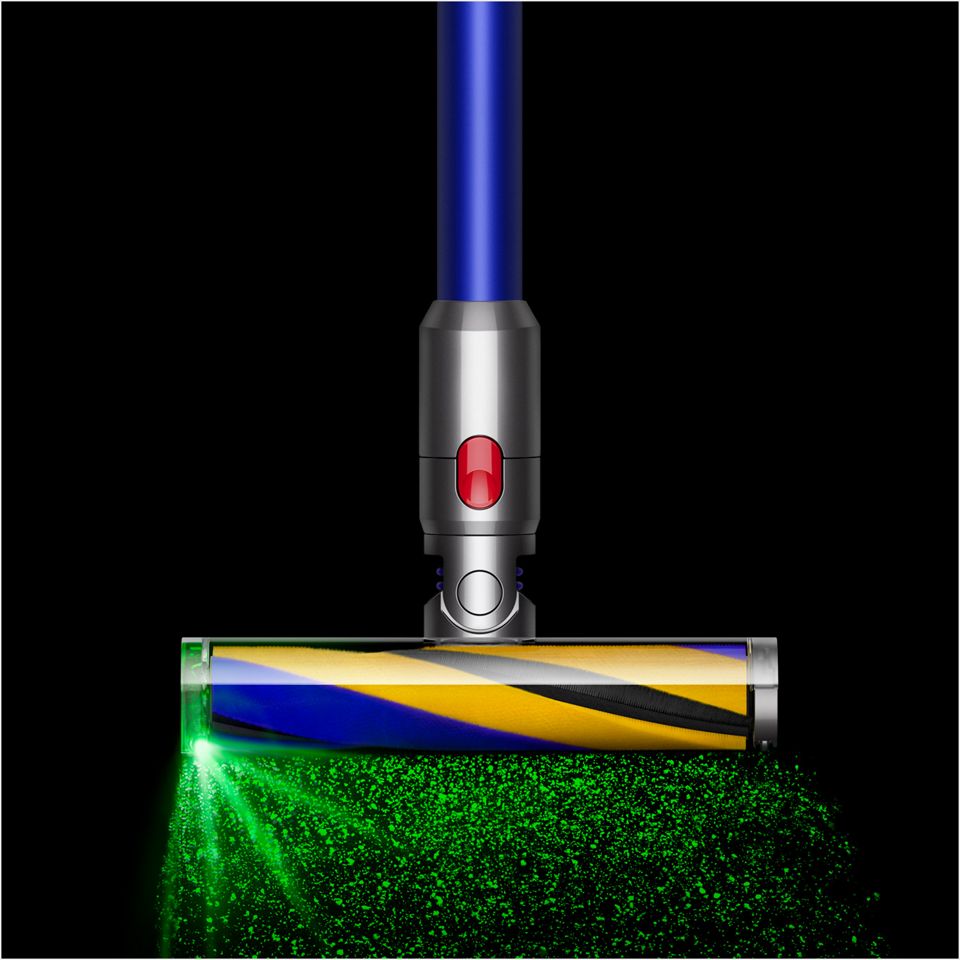

Fluffy Optic™ cleaner head
The new Fluffy Optic™ cleaner head illuminates the microscopic dust and dirt on hard floors. Anti-static carbon fibre filaments remove fine dust from hard floors and narrow gaps.
-

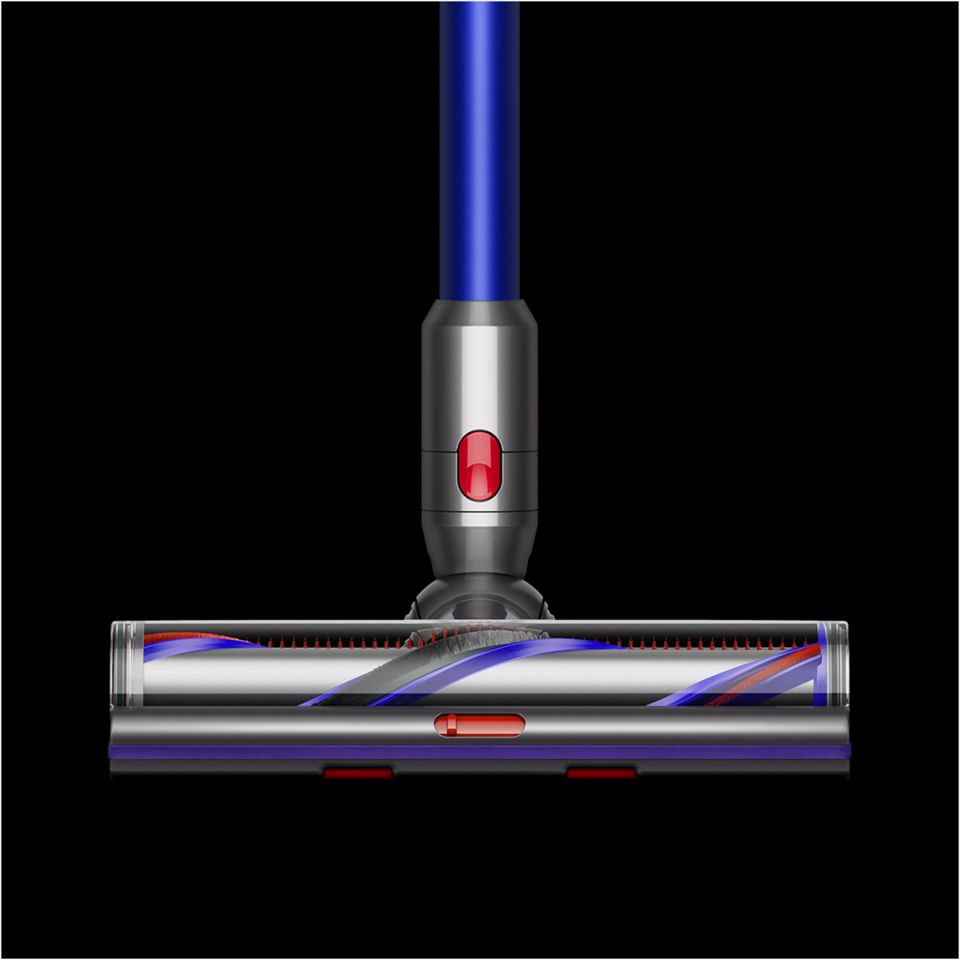

Digital Motorbar™ XL cleaner head
The Digital Motorbar™ XL cleaner head's Dynamic Load Sensing technology intelligently adapts suction power to different floors, while in Auto mode. Hair removal vanes automatically de-tangle hair from the brush bar as you clean.
FAQs about the cleaner heads
The Fluffy Optic™ cleaner head is optimised to perform on any smooth, hard floors.
The Fluffy Optic™ cleaner head uses illumination technology engineered specifically for hard floors. The illumination does not work on carpets.
The de-tangling comb on the brush bar has 56 polycarbonate teeth to prevent tangling around the bristles. The comb is always in contact with the brush bar as it spins to prevent wrapping, so hair is sucked straight into the bin.
The Digital Motorbar™ XL cleaner head technology has been developed by Dyson to suck up long hair and pet hair fast. We tested the technology in the lab using international standard test to represent pet hair.
Maintaining your Dyson Gen5outsize™ vacuum
Watch our maintenance guide for tips and step-by-step instructions on how to keep your machine performing at its best.
-
How to clean the Fluffy Optic™ brush bar
You can wash your Fluffy Optic™ cleaner head’s brush bar in warm water.
-
How to empty and clean the bin
Overfilling the bin can reduce suction and affect the accuracy of the particle count. To maintain suction, empty before the debris reaches the MAX marker.
-
How to check for blockages
Your LCD screen will alert you if there's a blockage in your machine's airways. On-screen animation shows you which airflow pathways to check.
FAQs about the battery
A full charge takes up to 4.5 hours.
Run time is displayed on the LCD screen, and your machine will pulse three times to alert you if it's getting low.
Yes, your swappable battery packs can be charged on or off your machine, on or off the dock.
We recommend alternating your batteries regularly to prolong battery health.
Yes, the battery is designed to be left on charge, to ensure your vacuum is ready for the next use.
We recommend charging your machine after every clean to maximise run time.
Your machine will pulse seven times to alert you if there's a blockage. You can follow the animated guide on your LCD screen to clear it.
The LCD screen on your machine will remind you when it's time to clear your filter. This will usually be around once a month, but may be more frequent if you use your machine more heavily. After cleaning the filter, always leave it to dry for at least 24 hours. You must ensure it's completely dry before refitting. We recommend following the cleaning instructions and cleaning by hand. The filter is not suitable for dishwasher use.
Dyson Gen5outsize™ accessories
Your Dyson Gen5outsize™ vacuum is equipped with Dyson-engineered tools to help you clean every surface and space around your home.
-

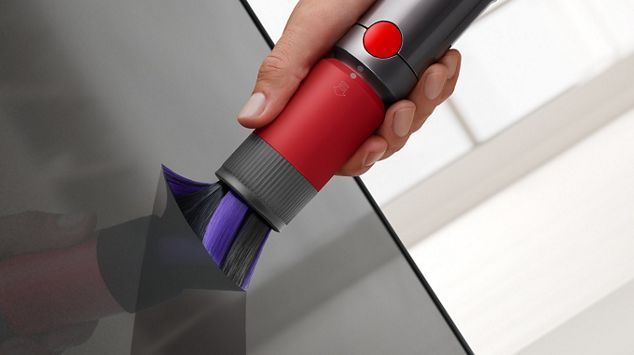

Scratch-free dusting brush
Gentle on delicate surfaces. Self-cleaning – a rotating cuff keeps the soft bristles clear of dust.
-

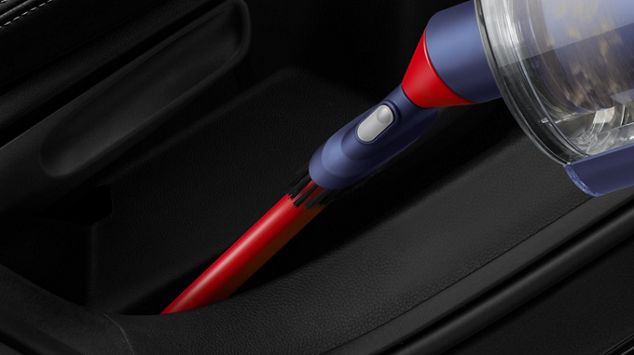

Awkward gap tool
Long and narrow, with a 22° twist to clean car storage compartments, tight gaps and hard-to-reach places.
-
Extension hose
Adds up to 61cm of flexible reach to any non-powered tool attachment, to clean up high or down low in your home or car.
-

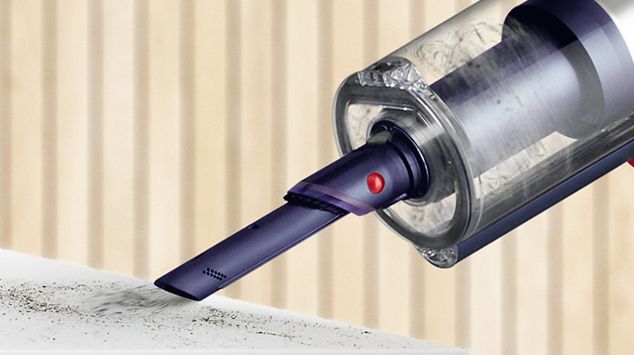

Built-in dusting and crevice tool
Transforms to a handheld in a click. The Built-in dusting and crevice tool is always at your fingertips for on-the-spot cleans.
-

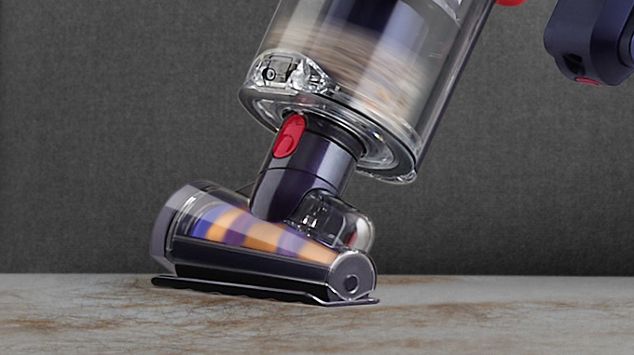

Hair screw tool
Picks up long hair and pet hair, fast. De-tangling conical brush bar spirals hair straight into the bin.
-
Combination tool
Two tools in one. Wide nozzle and brush for precise cleaning around tricky edges and narrow spaces around your home and car.
The Dyson warranty
¹Best accuracy achieved in Auto mode. Auto ramp feature in Auto mode only. Testing based on average in home usage according to Dyson internal test data.
²Effectiveness influenced by ambient light conditions, debris type and surface.
³Dynamic Load Sensing technology only applies in Auto mode with the Digital Motorbar™ XL cleaner head attached.
