Alerts

The screen will alert you when your machine needs your attention.

The alert will flash for approximately 5 seconds, proceeded by a playable graphic. Follow the instructions on screen to maintain performance.

Your vacuum counts and measures the size of dust particles as you clean.¹ The LCD screen shows what’s been sucked up, displaying real-time scientific proof of a deep clean.²

The particle count is available in all power modes and with all attachments. Like our clear bin filling with dust, you can see debris increase on-screen as you clean.

Settings menu

Control the settings on your machine using the selection button. To enter the settings menu, press and hold the button until the menu screen appears. Tap to scroll through the options available.

Particle count and graph

You can turn the measuring and counting of particles on and off. Turning off the particle count and graph will stop your machine automatically adjusting suction power.

Adjust reactive suction power sensitivity

Use the selection button to change how sensitive the particle count is. This will change how your machine automatically reacts to dust particles.

Exit settings menu

Tap to scroll through the selection menu. Select 'Exit menu'.

¹Tested to EN 60312-1:2017 CL5.1, CL5.2 and CL5.3 for hard floors, crevices and carpets in Boost mode.

²Quantity of dust displayed on-screen varies depending on usage.

As dust enters your vacuum, the particles are continuously counted and categorise in size from 10-500 microns (µm) and above. Real-time results are displayed in the particle count.

Yellow bar

10µm – particles as small as allergens and pollen

Orange bar

60µm – particles as small as microscopic dust and skin flakes

Pink bar

180µm – particles as small as dust mites and fine sand

Purple bar

500µm – particles as small as sugar and fleas¹

¹Particle sizes and densities vary. Examples shown may occur within one or more displayed size range. Some particles have a range including sizes smaller than 10µm, which may not be detected.

Low battery

Fully charge the machine.

The machine should be charged with the battery attached to the machine.

Charge the machine

Connect to the charger either directly or in the docking station.

The blue LEDs on each side of the battery should light up.

The blue LEDs – one on each side of the battery – will flash on and off during charging.

When the battery is charged, both LEDs will light for 5 seconds, then go out.

The screen will also show the battery charge level at 100%.

The machine can take up to 4.5 hours to fully charge.

Pull the trigger

Remove the charger from the machine and pull the trigger.

The LED lights should be on constantly when in use.

If the LED lights blink on/off for approximately 10 seconds when the trigger is pulled, please select 'LED lights blinking'.

Dock charging

If the machine is being charged through the docking station, please disconnect the charger and connect it directly into the machine.

Please check household electrics or use an alternative plug socket.

Remove the charger

Press and hold the trigger for 10 seconds.

The blue LEDs – one on each side of the battery – will flash on and off during charging.

When the battery is charged, both LEDs will light for 5 seconds, then go out.

The screen will also show the battery charge level at 100%.

The machine can take up to 4.5 hours to fully charge.

Automatic cut out

Large items may block the machine or tools. If any part becomes blocked or the filter needs washing, the machine may automatically cut out.

Motor is pulsating

This will happen after the motor pulses a number of times (i.e. switches on and off in quick succession) and the blockage indicator will light. Leave to cool down before looking for blockages.

Be careful not to pull the 'ON' trigger while looking for blockages. Operating the machine while it is partially dismantled could result in personal injury.

Remove the tools

Remove all tools and accessories from the machine e.g. wand, cleaner head, crevice tool etc. Please ensure the bin is empty before continuing with any checks.

Press and hold the trigger for 10 seconds.

Check for blockages

Check both ends of the wand for blockages and remove as necessary.

Reattach the cleaner head, tool or accessory to the wand. Reattach the wand to the machine.

Press and hold the trigger for 10 seconds.

Remove any debris from the brush bar.

Slide the Brush bar back onto the Cleaner head, around the motor. The end cap should be in the open position as shown.

Push the end cap until it clips securely back into the closed position.

Turn the cleaner head upside down so the underside of the cleaner head is facing you.

Push the end cap upwards until it opens and pull the brush bar out of the cleaner head.

Remove the end cap from the brush bar. Do not wash the end cap.

Hold the brush bar under running water and gently rub to remove any lint or dirt.

Stand the brush bar upright as shown. Leave to dry completely for a minimum of 24 hours.

Reattach the end cap to your brush bar.

Slide the Brush bar back onto the Cleaner head, around the motor. The end cap should be in the open position as shown.

Push the end cap until it clips securely back into the closed position.

Check the bin inlet

Check the inlet at the front of the machine for any blockages and remove as necessary.

Check the shroud opening

Hold the machine with the bin in a downwards position. Firmly push the red bin release button. The bin will slide down opening the bin base. The bin base will not open if the red button is not pushed down fully.

Check the opening on the cyclone shroud for any blockages. Remove as necessary.

Close the clear bin by pushing the bin base upwards until it clicks into place.

Press and hold the trigger for 10 seconds.

Remove the bin

Hold the machine with the bin in a downwards position. Firmly push the red bin release button. The bin will slide down opening the bin base. The bin base will not open if the red button is not pushed down fully.

Press the red button located on the bin runner to release the bin and slide the bin off the runner.

Gently tap the side of the cyclone over a bin. This will remove any fine dust clogged up in the cyclone. Using the combination tool, clean the shroud to remove any debris around the cyclone.

Check the cyclone for blockages and remove as necessary.

To refit the clear bin

Insert the spine into the bin runner.

Close the clear bin by pushing the bin base upwards until it clicks into place.

Attach the wand and cleaner head and test the machine.

Remove the bin

Hold the machine with the bin in a downwards position. Firmly push the red bin release button. The bin will slide down opening the bin base.

Press the red button located on the bin runner to release the bin and slide the bin off the runner.

Gently tap the side of the cyclone over a bin. This will remove any fine dust clogged up in the cyclone. Using the Combination tool, clean the shroud to remove any debris around the cyclone.

Check the cyclone for blockages and remove as necessary.

To refit the clear bin

Insert the spine into the bin runner.

Close the clear bin by pushing the bin base upwards until it clicks into place.

Attach the wand and cleaner head and test the machine.

Our cordless vacuum filters are engineered to capture microscopic particles. Over time, these can build up in the filter and reduce performance. By washing the filter once a month you can help maintain suction power and prevent the machine from pulsating.

This indicates the filter needs washing.

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?".

Leave the filter unit to dry completely in a dry environment with good airflow, for a minimum of 24 hours. Ensuring it is completely dry before refitting.

Press and hold the trigger for 10 seconds.

Removing the filter

Remove the filter unit by twisting it counter clockwise. Gently pull away from the machine.

Gently tap the filter unit to remove any excess dust and debris before washing it.

Wash the filter in cold water only.

WARNING: Please do not use detergent, do not wash in a dishwasher or washing machine.

Wash the pleated paper element of the filter unit first; hold the filter unit under a cold water tap with the foam element downwards and run cold water over the pleated paper. Continue washing until the water runs clear.

Wash the foam element of the filter unit next; hold the filter unit under a cold water tap with the foam element downwards so that dirty water does not contaminate the pleated paper element. Run cold water over the inside and outside of the foam element and squeeze the foam gently to expel the dirt. Continue washing until the water runs clear.

Wash the outside of the filter unit. Then fill the unit with cold water, place your hands over the open ends and shake gently. Repeat washing the elements and outside of the filter unit until the water runs clear.

Gently shake the filter unit to remove any excess water and leave to drain with the foam element end facing up.

Drying

Leave the filter unit to dry completely in a dry environment with good airflow, for a minimum of 24 hours. Check that the filter unit is completely dry.

Refit

To refit, return the filter unit to the main body and twist clockwise until it clicks into place.

The filter unit may require more frequent washing if vacuuming fine dust or if use is mainly in Boost mode.

Check for blockages

With the accessory removed from the machine, check both ends for blockages and remove as necessary.

Refit the accessory back onto the machine.

Press and hold the trigger for 10 seconds.

Clear the floor tool

On the side of the cleaner head, locate the end cap. Using a coin, turn the end cap anticlockwise a quarter of the way to remove it.

Note: There should be a small padlock icon along with directional arrows to help you unlock the end cap.

Remove the brush bar from the High Torque cleaner head and clear away any hair or fibres. Check the neck of the cleaner head (where the cleaner head connects to the wand) for any blockages. Ensure there is no build-up of dust or debris in the small crevice between where the brush bar sits and the neck of the cleaner head.

The brush bar, now clear of any debris, can be reinserted into the cleaner head. Securely fasten the end cap.

Place the cleaner head onto the bin, change the suction control slider to the positive position and test the machine.

Switch the suction control slider to the negative setting and continue testing.

Remove the cover and brush bar

Remove the Hair screw tool from the wand or machine.

Push the base plate open. Press the red lever down to release the cleaner head cover.

Pull the cleaner head cover off the main body of the tool.

Look for obstructions

Pull your brush bar firmly to remove it from the main body.

Check and remove and obstructions from all the three parts of your Hair screw tool.

Your Hair screw tool isn't washable. Wipe over with a damp lint-free cloth.

Don't put any part of your machine in a dishwasher or use detergents, polishes or air fresheners.

Re-assemble Hair screw tool

Put your brush bar back into position and press firmly until it clicks back into position.

Clear the floor tool

Under the cleaner head by the soft roller, locate the fastener. Using a coin, turn the fastener anticlockwise a quarter of the way to unlock the end cap, and slide it up to remove.

Remove the brush bar from the Laser Slim Fluffy™ cleaner head and clear away any hair or fibres. Check the neck of the cleaner head (where the cleaner head connects to the wand) for any blockages. Ensure there is no build-up of dust or debris in the small crevice between where the brush bar sits and the neck of the cleaner head.

The brush bar, now clear of any debris, can be reinserted into the cleaner head. Securely fasten the end cap.

Press the cleaner head release button on the end of the wand. Place the cleaner head upside down.

Push the end cap up fully and pull the brush bar out of the cleaner head.

Hold your brush bar under running water and gently rub to remove any lint or dirt.

Stand your brush bar upright as shown. Leave to dry completely for at least 24 hours.

Reattach the end cap to your brush bar.

To maintain optimum performance, keep your laser lens clean. Only clean the lens when the cleaner head is not attached to your machine.

Use a soft, dry, lint-free cloth to wipe the lens.

Refit the cleaner head on the machine.

Press and hold the trigger for 10 seconds.

Check the bin inlet

Check the inlet at the front of the machine for any blockages and remove as necessary.

Check the shroud opening

Hold the machine with the bin in a downwards position. Firmly push the red bin release button. The bin will slide down opening the bin base. The bin base will not open if the red button is not pushed down fully.

Check the opening on the cyclone shroud for any blockages. Remove as necessary.

Close the clear bin by pushing the bin base upwards until it clicks into place.

Press and hold the trigger for 10 seconds.

Diagnostic screen

If you accidentally access the diagnostic screen, you can exit the menu by selecting the Exit option.

Check the filter

Before exiting the menu, please ensure the filter is fitted correctly.

The filter unit should be securely fitted onto the main body and turned clockwise until it clicks into place.

Exiting the menu

Once the filter is securely in place, press and hold the selector button for approximately 10 seconds or until the screen reverts back to the main display screen.

If you are unable to revert back to the main display screen manually, it can be achieved by leaving the machine to go inactive (around 15 minutes of no interaction).

If the filter isn't correctly fitted, the machine will not turn on when pressing the trigger.

Removing the filter

Remove the filter by turning it anticlockwise. Gently pull it away from the machine.

Refit

Insert the filter back into the machine. Turn the filter clockwise until it clicks into place.

Press and hold the trigger for 10 seconds.

This alert will continue until maintenance has been carried out.

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has washing the filter resolved the problem?"

Removing the filter

Remove the filter by turning it anticlockwise. Gently pull it away from the machine.

Gently tap the filter unit to remove any excess dust and debris before washing it.

Wash with warm, running tap water - gently rubbing your filter with your fingers to remove the dirt.

Place your hand over one end of your filter.

Fill the filter with warm tap water.

Place your hand over the open end of the filter and shake it firmly to remove trapped dirt and debris.

Gently shake the filter unit to remove any excess water and leave to drain with the foam element end facing up.

Drying

Leave the filter to dry for a minimum of 24 hours in an environment with good airflow. Ensure that the filter is completely dry before reinserting it into the machine.

Refit

Insert the filter back into the machine. Turn the filter clockwise until it clicks into place.

The filter may need to be washed more frequently if you are vacuuming a lot of fine dust, or if the machine is predominantly being used in Boost mode.

This alert will continue until maintenance has been carried out.

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?"

Check the bin inlet

Check the inlet at the front of the machine for any blockages and remove as necessary.

Check the shroud opening

Hold the machine with the bin in a downwards position. Firmly push the red bin release button. The bin will slide down opening the bin base. The bin base will not open if the red button is not pushed down fully.

Check the opening on the cyclone shroud for any blockages. Remove as necessary.

Close the clear bin by pushing the bin base upwards until it clicks into place.

Press and hold the trigger for 10 seconds.

Test the machine

Remove all tools and accessories from the machine e.g. wand, cleaner head, crevice tool etc. Please ensure the bin is empty before continuing with any checks.

Put the machine in Boost mode.

Press and hold the trigger for 10 seconds.

Remove the bin

Hold the machine with the bin in a downwards position. Firmly push the red bin release button. The bin will slide down opening the bin base. The bin base will not open if the red button is not pushed down fully.

Press the red button located on the bin runner to release the bin and slide the bin off the runner.

Gently tap the side of the cyclone over a bin. This will remove any fine dust clogged up in the cyclone. Using the combination tool, clean the shroud to remove any debris around the cyclone.

Press and hold the trigger for 10 seconds.

Check the bin inlet

Check the opening on the cyclone shroud for any blockages. Remove as necessary.

To refit the clear bin

Insert the spine into the bin runner.

Close the clear bin by pushing the bin base upwards until it clicks into place.

Press and hold the trigger for 10 seconds.

A high pitch whistle could indicate a seal is damaged or the machine is blocked.

If the noise occurs with the wand and cleaner head attached, it is likely to be caused by something caught in the cleaner head. Select the appropriate cleaner head.

If the noise occurs without the wand and cleaner head, it is likely to be caused by either the bin or cyclone.

Check the bin inlet

Check the inlet at the front of the machine for any blockages and remove as necessary.

Check the shroud opening

Hold the machine with the bin in a downwards position. Firmly push the red bin release button. The bin will slide down opening the bin base. The bin base will not open if the red button is not pushed down fully.

Check the opening on the cyclone shroud for any blockages. Remove as necessary.

Close the clear bin by pushing the bin base upwards until it clicks into place.

Press and hold the trigger for 10 seconds.

Clear the floor tool

On the side of the cleaner head, locate the end cap. Using a coin, turn the end cap anticlockwise a quarter of the way to remove it.

Note: There should be a small padlock icon along with directional arrows to help you unlock the end cap.

Remove the brush bar from the High Torque cleaner head and clear away any hair or fibres. Check the neck of the cleaner head (where the cleaner head connects to the wand) for any blockages. Ensure there is no build-up of dust or debris in the small crevice between where the brush bar sits and the neck of the cleaner head.

Pull the cleaner head cover off the main body of the tool.

Look for obstructions

Pull your brush bar firmly to remove it from the main body.

Check and remove and obstructions from all the three parts of your Hair screw tool.

Don't put any part of your machine in a dishwasher or use detergents, polishes or air fresheners.

Re-assemble Hair screw tool

Put your brush bar back into position and press firmly until it clicks back into position.

Check the red locking lever is in the unlocked position. Align the cleaner head cover with the guide on the main body. Push it down until it clicks into position.

Push the red locking lever up until it clicks into position and push the base plate back into place.

Automatic cut out

Large items may block the machine or tools. If any part becomes blocked or the filter needs washing, the machine may automatically cut out.

Motor is pulsating

1 solid blue light will indicate the machine has a low level of charge.

If the machine is cutting out/pulsating, this will indicate a blockage.

Be careful not to pull the 'ON' trigger while looking for blockages. Operating the machine while it is partially dismantled could result in personal injury.

Remove the tools

Remove all tools and accessories from the machine e.g. wand, cleaner head, crevice tool etc. Please ensure the bin is empty before continuing with any checks.

Press and hold the trigger for 10 seconds.

The screen will alert you when your machine needs your attention.

The alert will flash for approximately 5 seconds, proceeded by a playable graphic. Follow the instructions on screen to maintain performance.

The suction power of the machine varies depending which power mode you have selected. Boost mode being the most powerful.

Pick up issues are typically caused by a blockage.

Be careful not to pull the 'ON' trigger while looking for blockages. Operating the machine while it is partially dismantled could result in personal injury.

Remove the tools

Remove all tools and accessories from the machine e.g. wand, cleaner head, crevice tool etc. Please ensure the bin is empty before continuing with any checks.

Press and hold the trigger for 10 seconds.

If your machine has recently been fully charged but the battery alert is still present, we recommend that you place the machine back on charge for a few moments.

The display will again show that the battery is fully charged.

Remove the charger from the machine and pull the trigger.

Automatic cut out

This machine is fitted with an automatic cut out. If any part becomes blocked, the machine may automatically cut out.

The display of your machine will alert you when simple maintenance steps are needed.

Power modes

The machine has three power modes for different tasks. The overall run time is displayed on the digital display screen in minutes and seconds and will vary between each of the three power modes.

Run time

The overall run time can increase and decrease depending on the power mode, floor type and tool being used. Any change to the run time can take up to 30 seconds to appear on the digital display.

Eco mode

Maximum run time for longer cleans all around your home, with up to 60 minutes of run time.

Auto/Med mode

The optimum balance to clean all floors, with up to 40 minutes of run time.

Attach your cleaner head or Hair screw tool to activate Auto mode, which automatically adapts power between carpets and hard floors.

Suction power automatically adapts to dust levels.

Boost mode

Designed for intensive cleaning on ground-in dirt, with up to 5 minutes of run time.

When the machine is placed on charge it enters an idle state, this reduces all power consumption ready for the next use. Due to this reduction in the power, when the machine is removed from charge and powered on for the first time it can display an incorrect run time. This is nothing to be concerned about. The machine will assess the charge capacity and current usage within 30 seconds, displaying the correct time on the digital display.

To achieve the maximum run time, the machine must first be calibrated. The machine should be fully charged approximately five times. Between charges, use the machine until it has no battery remaining.

Where you have additional click-in batteries, we recommend alternating and charging all click-in batteries regularly to prolong battery health.

Charge the machine

Connect to the charger either directly or in the docking station.

When the machine needs charging, your machine will pulse three times and a low run time icon will appear on the screen.

When your battery is empty, a red warning icon will appear on the screen.

When Particle count and graph is turned on, low run time will be in amber and red when in Boost mode.

Charge the machine

When the battery is charged, both LEDs will light for 5 seconds, then go out.

Remove the charger

Press and hold the trigger for 10 seconds.

Pull the trigger

Press and hold the trigger for 10 seconds.

The LED lights should be on constantly when in use.

If the LED lights blink on/off for approximately 10 seconds when the trigger is pulled, please select 'LED lights blinking'.

Charging

If the machine is being charged through the docking station, please disconnect the charger and connect it directly into the machine.

Please check household electrics or use an alternative plug socket.

Remove the charger

Press and hold the trigger for 10 seconds.

The blue LEDs – one on each side of the battery – will flash on and off during charging.

When the battery is charged, both LEDs will light for 5 seconds, then go out.

The machine can take up to 4.5 hours to fully charge.

Remove the charger

Press and hold the trigger for 10 seconds.

Most Dyson vacuums have a built in safety mechanism that will turn off the machine if it begins to overheat. This typically happens when the machine is blocked, or if the filter needs washing.

If your machine continues to overheat, please allow it to cool before carrying out the performance checks.

Automatic cut out

This machine is fitted with an automatic cut out. If any part becomes blocked, the machine may automatically cut out.

Motor is pulsating

This will happen after the motor pulses a number of times (i.e. switches on and off in quick succession) and the blockage indicator will light. Leave to cool down before looking for blockages.

Be careful not to pull the 'ON' trigger while looking for blockages. Operating the machine while it is partially dismantled could result in personal injury.

Remove the tools

Remove all tools and accessories from the machine e.g. wand, cleaner head, crevice tool etc. Please ensure the bin is empty before continuing with any checks.

Press and hold the trigger for 10 seconds.

Check for blockages

Check both ends of the wand for blockages and remove as necessary.

Reattach the cleaner head, tool or accessory to the wand. Reattach the wand to the machine.

Press and hold the trigger for 10 seconds.

Charge the machine

Connect to the charger either directly or in the docking station.

The blue LEDs – one on each side of the battery – will flash on and off during charging.

Charge the machine

When the battery is charged, both LEDs will light for 5 seconds, then go out.

Remove the charger

Press and hold the trigger for 10 seconds.

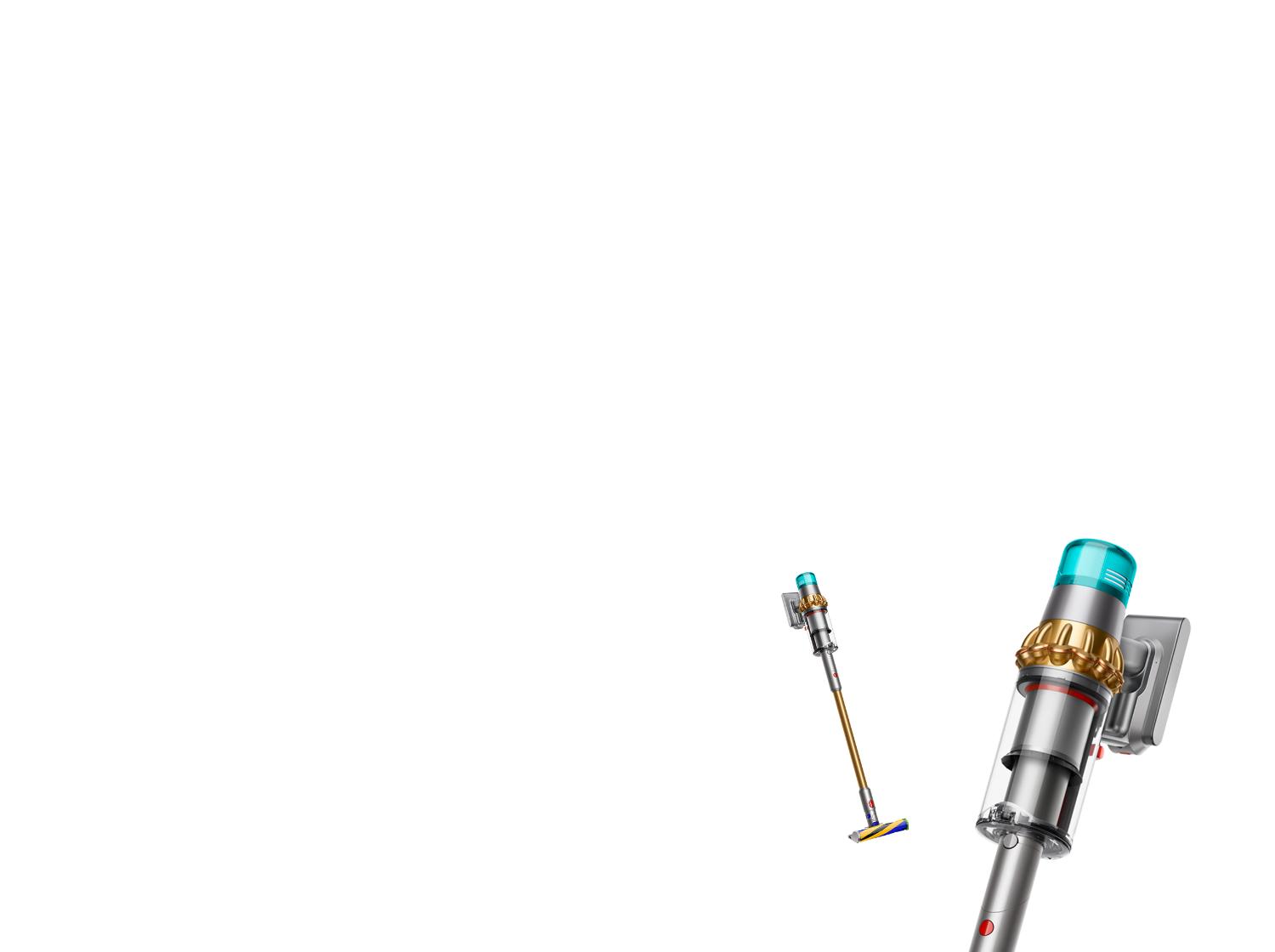

The Dyson V15™ Detect battery and monitoring system work together to gauge how much run time is remaining. The system calculates run time using an algorithm that ‘learns’ how your machine works over time. To get the best experience, we recommend fully charging your machine after every use. This helps the battery and monitoring system's algorithm to more accurately calculate and display remaining run time.

The actual run time of your machine remains unaffected while the algorithm learns to more accurately gauge remaining power.

The battery is designed to be left on charge permanently, and this will ensure that the machine is fully charged when it's next used. It will take up to 4.5 hours to fully charge your machine. Once the battery is fully charged, your machine won't use any more electricity.

If your machine continues to cut out even though run time remains on the screen, we recommend fully charging your machine, then using it continuously until the battery runs out. This should be completed within one cleaning session, but the trigger doesn't need to be held down throughout. We advise using Auto/Med mode for this clean. The more this process is repeated, the more accurate the algorithm becomes.

The battery is designed to be left on charge permanently, and this will ensure that the machine is fully charged when it's next used. It will take up to 4.5 hours to fully charge your machine. Once the battery is fully charged, your machine won't use any more electricity.

Damp or musty

A damp or musty smell is caused when dust in the cyclone has come into contact with water.

It may not be a direct contact with water, for example when vacuuming pet hair that is slightly damp, this moisture will combine with the dust in the cyclone causing the smell.

Additionally the smell may occur if the filter goes back into the machine wet.

Only the filter and the brush bar from the Laser Fluffy™ cleaner head can be washed. The bin can be cleaned with a damp cloth only. Washed and cleaned parts must be completely dry before being refitted to the machine.

Remove the bin

Hold the machine with the bin in a downwards position. Firmly push the red bin release button. The bin will slide down opening the bin base. The bin base will not open if the red button is not pushed down fully.

Press the red button located on the bin runner to release the bin and slide the bin off the runner.

Gently tap the side of the cyclone over a bin. This will remove any fine dust clogged up in the cyclone. Using the combination tool, clean the shroud to remove any debris around the cyclone.

Check the opening on the cyclone shroud for any blockages. Remove as necessary.

The clear bin is not dishwasher safe and the use of detergents, polishes or air fresheners to clean the clear bin is not recommended as this may damage your machine. Clean the clear bin with a damp cloth only.

To refit the clear bin

Insert the spine into the bin runner.

Close the clear bin by pushing the bin base upwards until it clicks into place.

This indicates the filter needs washing. Please follow the steps in the video.

Leave the filter to dry for a minimum of 24 hours in an environment with good airflow. Ensure that the filter is completely dry before reinserting it into the machine.

Press and hold the trigger for 10 seconds.

Damp or musty smell still present

Under normal use, any unpleasant smell can only be caused by something the machine has picked up. Please select pick up issues to carry out checks.

Removing the filter

Remove the filter by turning it anticlockwise. Gently pull it away from the machine.

Gently tap the filter unit to remove any excess dust and debris before washing it.

Wash with warm, running tap water - gently rubbing your filter with your fingers to remove the dirt.

Place your hand over one end of your filter.

Fill the filter with warm tap water.

Place your hand over the open end of the filter and shake it firmly to remove trapped dirt and debris.

Gently shake the filter unit to remove any excess water and leave to drain with the foam element end facing up.

Drying

Leave the filter to dry for a minimum of 24 hours in an environment with good airflow. Ensure that the filter is completely dry before reinserting it into the machine.

Refit

Insert the filter back into the machine. Turn the filter clockwise until it clicks into place.

The filter may need to be washed more frequently if you are vacuuming a lot of fine dust, or if the machine is predominantly being used in Eco mode or Auto/Medium mode.

Damp or musty smell still present

Under normal use, any unpleasant smell can only be caused by something the machine has picked up. Please select pick up issues to carry out checks.

If you are able to identify which part of the machine the smell is coming from, replacing this part may resolve the issue.

Attach your cleaner head or Hair screw tool to activate Auto mode. Suction power automatically adapts to dust levels.

Test the reactive suction power by placing a small pile of debris on the floor such as rice, sugar or cereal. You should notice a change in power during pick-up.

Settings menu

Control the settings on your machine using the selection button. To enter the settings menu, press and hold the button until the menu screen appears. Tap to scroll through the options available.

Adjust reactive suction power sensitivity

Use the selection button to change how sensitive the particle count is. This will change how your machine automatically reacts to dust particles.

Exit settings menu

Tap to scroll through the selection menu. Select 'Exit menu'.

Please check all floor tools

Please connect the floor tool directly on to the bin.

If the brush bar on every tool spins when connected to the bin, please select "The wand is damaged".

If the brush bar isn't spinning on any tool, please select "The brush bar does not spin on any cleaner head".

Clear the floor tool

On the side of the cleaner head, locate the end cap. Using a coin, turn the end cap anticlockwise a quarter of the way to remove it.

Note: There should be a small padlock icon along with directional arrows to help you unlock the end cap.

Remove the brush bar from the High Torque cleaner head and clear away any hair or fibres. Check the neck of the cleaner head (where the cleaner head connects to the wand) for any blockages. Ensure there is no build-up of dust or debris in the small crevice between where the brush bar sits and the neck of the cleaner head.

The brush bar, now clear of any debris, can be reinserted into the cleaner head. Securely fasten the end cap.

Place the cleaner head onto the bin, change the suction control slider to the positive position and test the machine.

Switch the suction control slider to the negative setting and continue testing.

Remove the cover and brush bar

Remove the Hair screw tool from the wand or machine.

Push the base plate open. Press the red lever down to release the cleaner head cover.

Pull the cleaner head cover off the main body of the tool.

Look for obstructions

Pull your brush bar firmly to remove it from the main body.

Check and remove and obstructions from all the three parts of your Hair screw tool.

Your Hair screw tool isn't washable. Wipe over with a damp lint-free cloth.

Don't put any part of your machine in a dishwasher or use detergents, polishes or air fresheners.

Re-assemble Hair screw tool

Put your brush bar back into position and press firmly until it clicks back into position.

Check the red locking lever is in the unlocked position. Align the cleaner head cover with the guide on the main body. Push it down until it clicks into position.

Push the red locking lever up until it clicks into position and push the base plate back into place.

Clear the floor tool

Under the cleaner head by the soft roller, locate the fastener. Using a coin, turn the fastener anticlockwise a quarter of the way to unlock the end cap, and slide it up to remove.

Remove the brush bar from the Soft roller cleaner head and clear away any hair or fibres. Check the neck of the cleaner head (where the cleaner head connects to the wand) for any blockages. Ensure there is no build-up of dust or debris in the small crevice between where the brush bar sits and the neck of the cleaner head.

The brush bar, now clear of any debris, can be reinserted into the cleaner head. Securely fasten the end cap.

Please follow the steps in the video.

Washable brush bar - step by step

Press the cleaner head release button on the end of the wand. Place the cleaner head upside down.

Push the end cap up fully and pull the brush bar out of the cleaner head.

Hold the brush bars under running water and gently rub to remove any lint or dirt.

Stand your brush bar upright as shown. Leave to dry completely for at least 24 hours.

Reattach the end cap to your brush bar.

Slide your brush bar into the cleaner head. Push the end cap back down to the closed position.

To maintain optimum performance, keep your laser lens clean. Only clean the lens when the cleaner head is not attached to your machine.

Use a soft, dry, lint-free cloth to wipe the lens.

Refit the cleaner head on the machine.

Press and hold the trigger for 10 seconds.

Please ensure that you are emptying the bin as soon as the dirt reaches the level of the MAX mark.

Should the dirt in the bin exceed the MAX mark, the excess dirt can be pulled directly into the filter causing a blockage.

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?"

Empty as soon as the dirt reaches the level of the MAX mark - do not overfill. Ensure the machine is disconnected from the charger before emptying the clear bin. Be careful not to pull the 'ON' trigger.

Remove the wand by pressing the red wand release button and pulling away from the bin.

Emptying the bin

Hold the machine with the bin in a downwards position. Firmly push the red bin release button. The bin will slide down opening the bin base. The bin base will not open if the red button is not pushed down fully.

Closing the bin

Close the clear bin by pushing the bin base upwards until it clicks into place.

This is normal. Talc was used in production for the fitting of seals.

Further application of talc will not be required.

Sealed products are brand new and have not been resold as conditioned machines.

Scratches or marks on the wand

Marks on the wand can be caused by making contact with a painted surface such as a door frame.

These can be removed by wiping them with a damp cloth.

Turn the Laser ON/OFF

Try turning the Laser ON/OFF using the switch on the cleaner head.

Turn on and test the machine.

Class 1 laser product - Safe for pets and humans. Avoid looking directly into the beam.

Test the Wand

Remove the Laser Slim Fluffy™ cleaner head from the Wand.

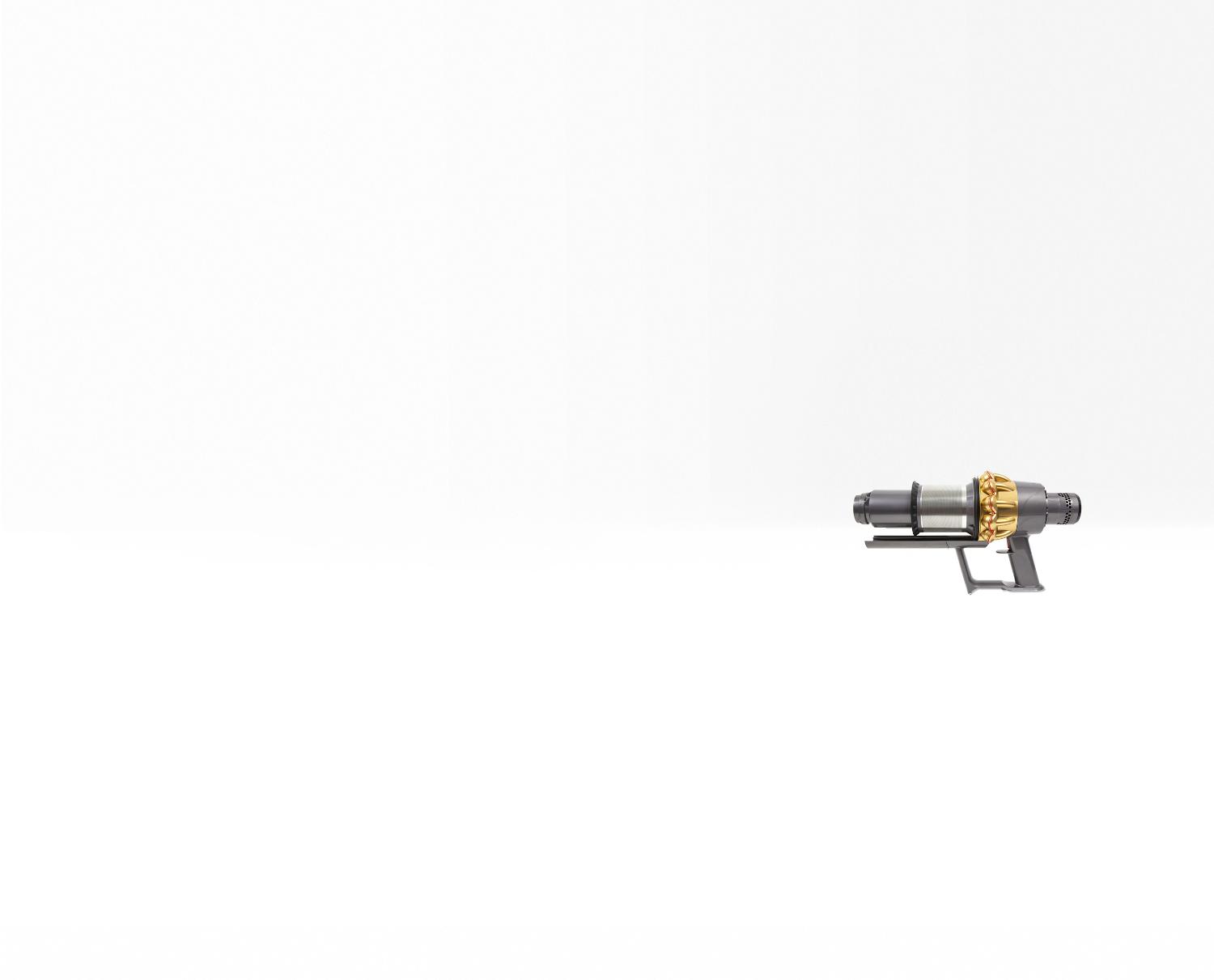

Remove the wand from the machine.

Put the Laser Slim Fluffy™ cleaner head directly onto the machine and test.

Check the front inlet

Check the bin inlet connections to ensure that they are not bent or damaged.

Test with another tool

Put another motorised tool directly onto the machine and test.
